Prepared By:
Ivan Svrcek
Life Cycle and Environmental Engineering Branch
Naval Air Warfare Center Weapons Division
1900 N. Knox Road
China Lake, CA 93555
November 10, 2009

contents | page one | page two | page three

Final Report for Millenniata DVD Testing
August 2009 - October 2009
Page Three (of Three)

APPENDIX A PRE TEST DATA

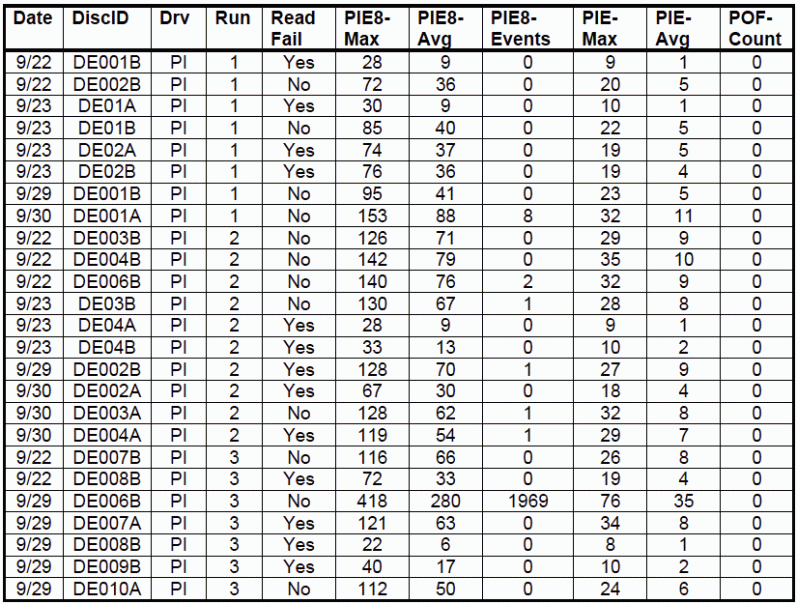

Table A-1. Delkin Pre Test Data

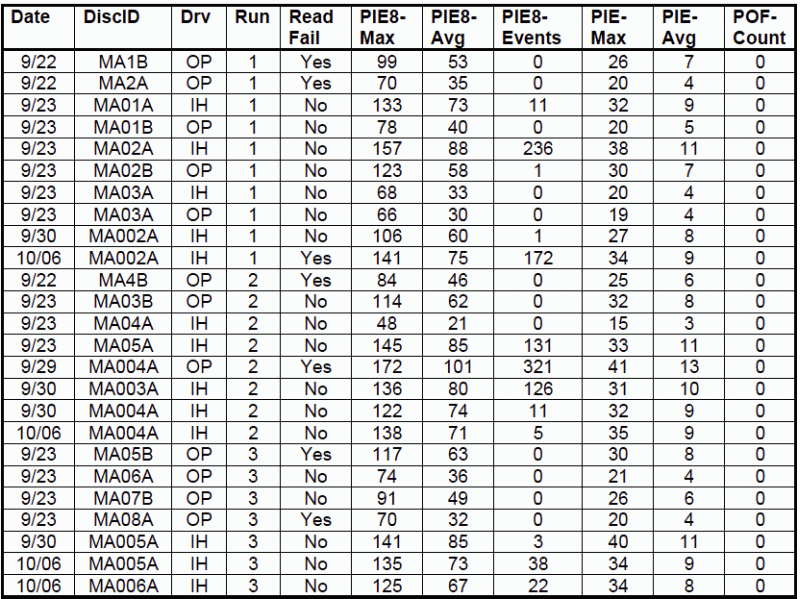

Table A-2. MAM-A Pre Test Data

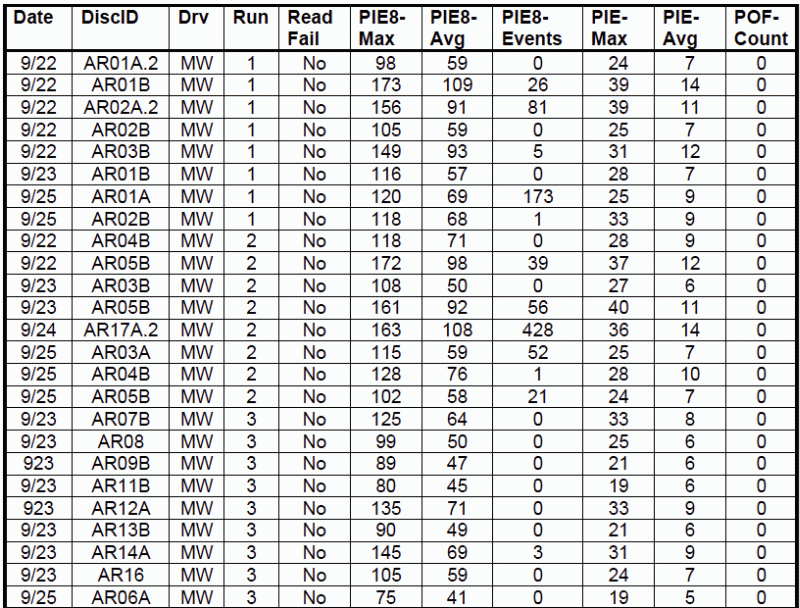

Table A-3. Millenniata Pre Test Data

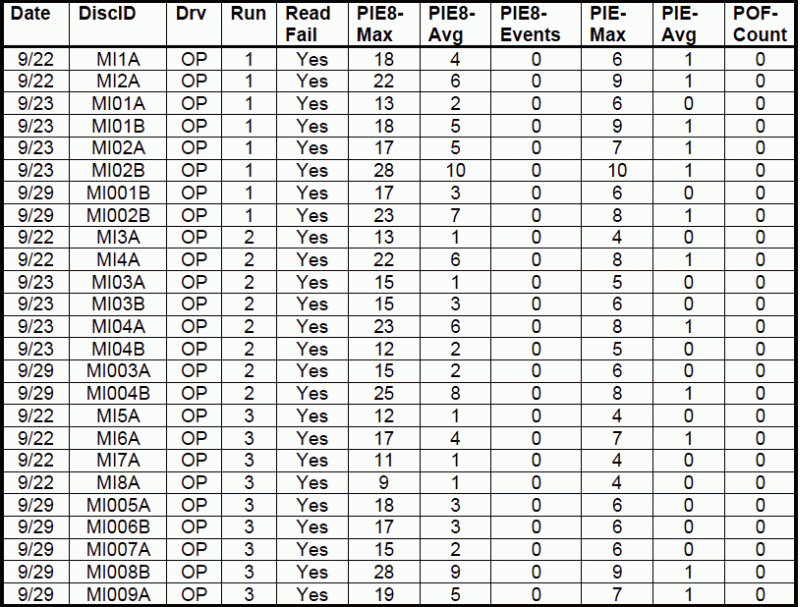

Table A-4. Mitsubishi Pre Test Data

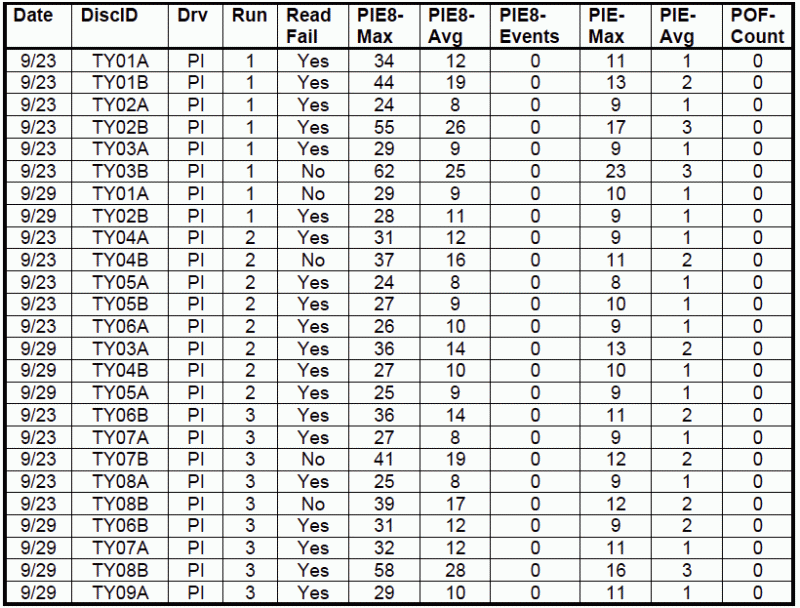

Table A-5. Taiyo Yuden Pre Test Data

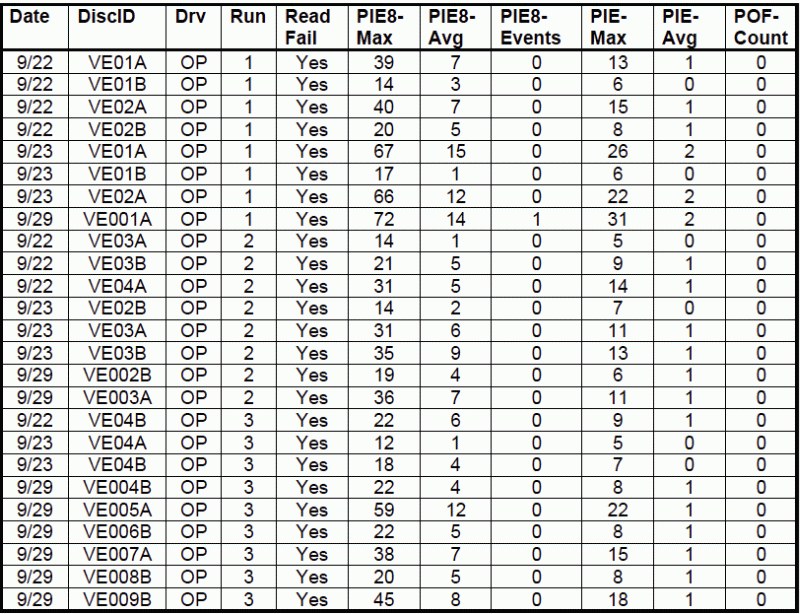

Table A-6. Verbatim Pre Test Data

APPENDIX B STRESS CYCLE DATA

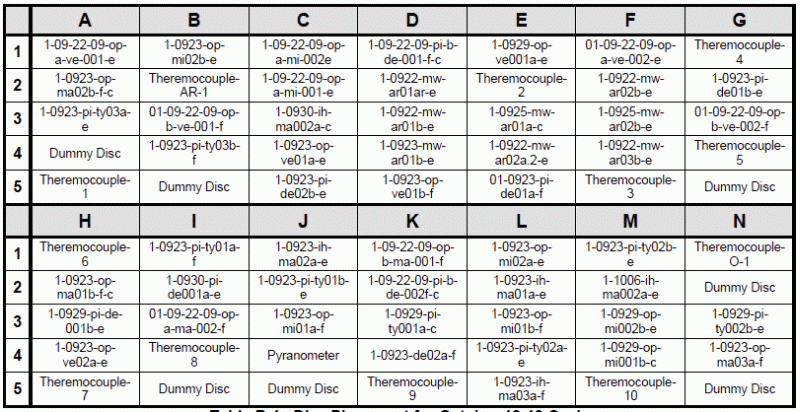

Table B-1. Disc Placement for October 18-19 Cycle

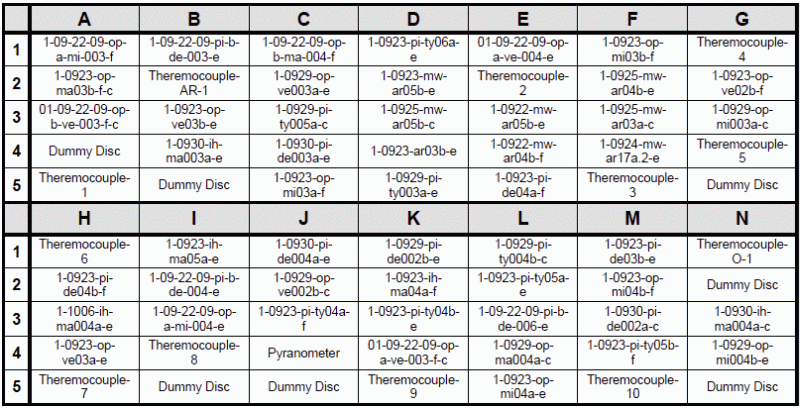

Table B-2. Disc Placement for October 19-20 Cycle

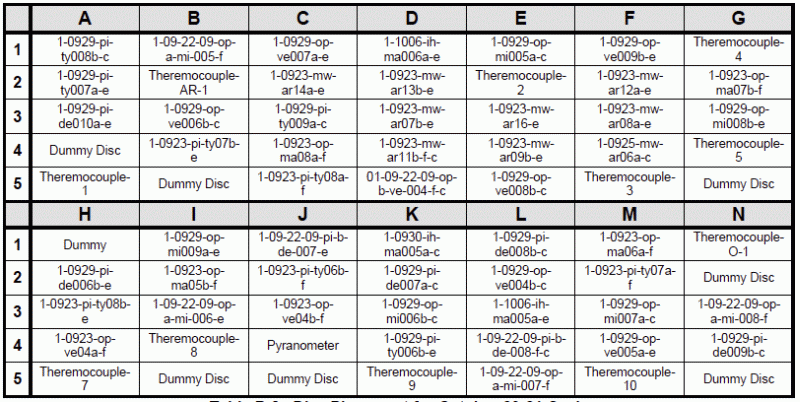

Table B-3. Disc Placement for October 20-21 Cycle

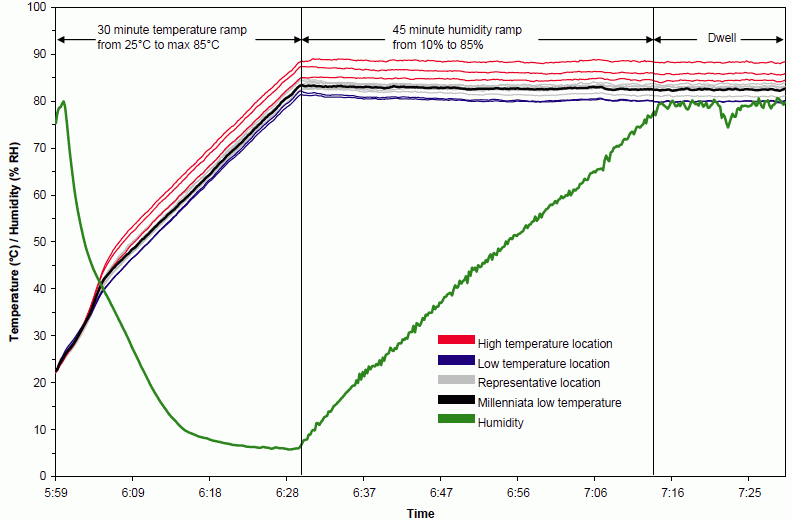

Figure B-1. October 18-19 Temperature and Humidity Ramp Up

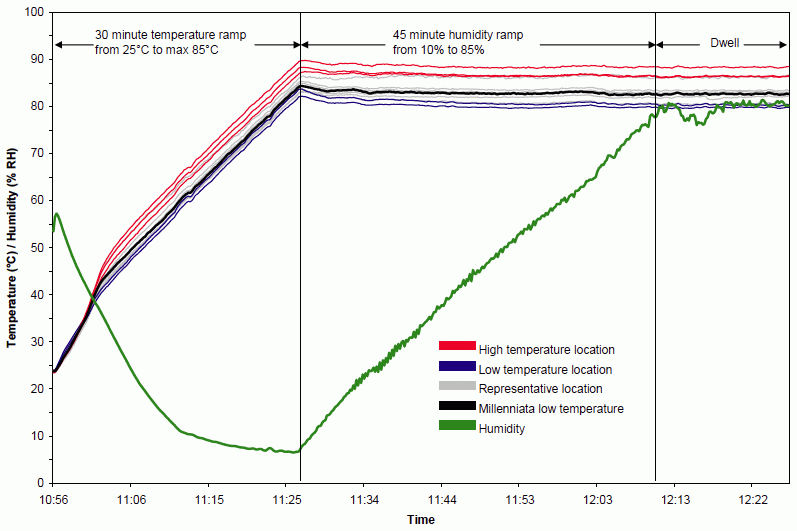

Figure B-2. October 19-20 Temperature and Humidity Ramp Up

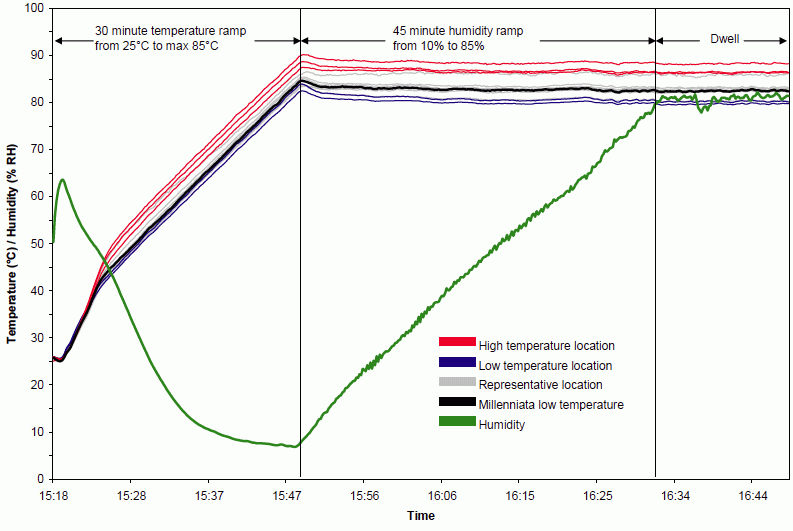

Figure B-3. October 20-21 Temperature and Humidity Ramp Up

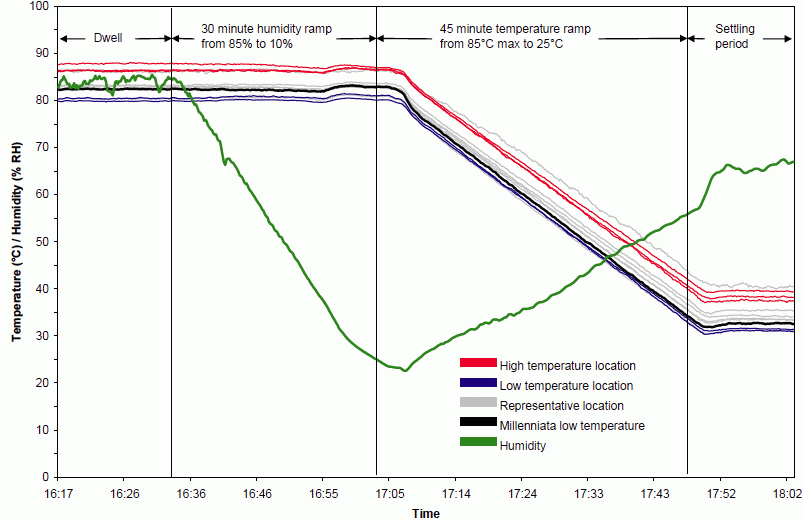

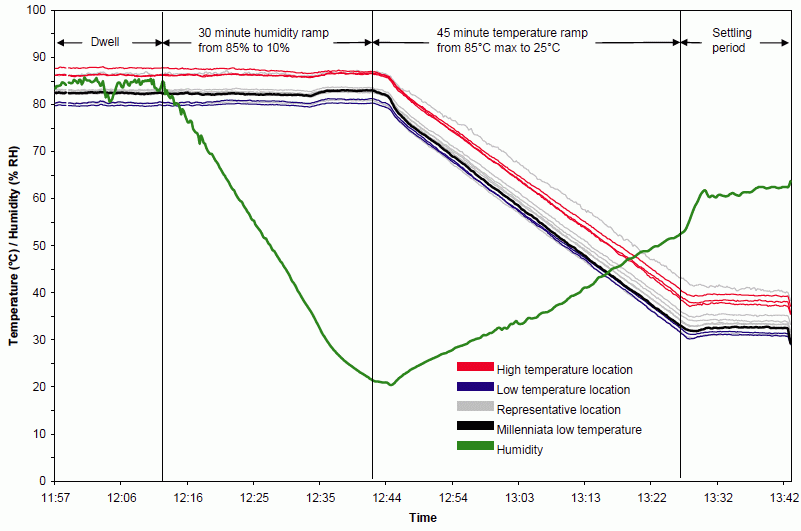

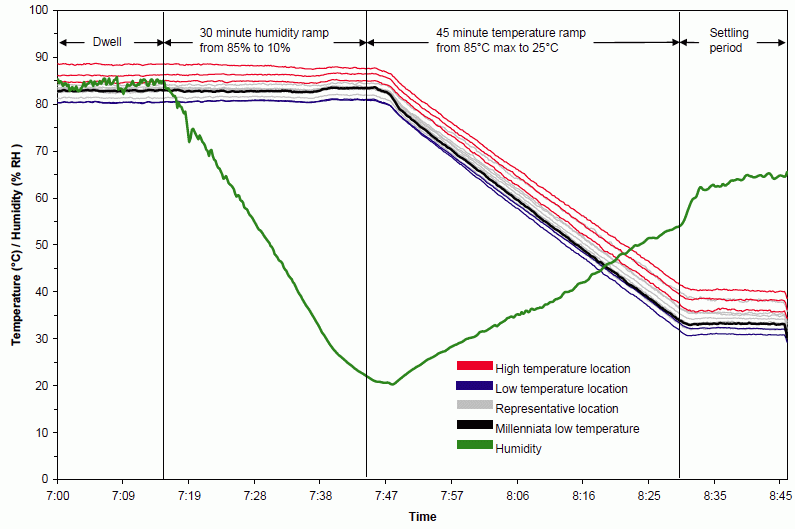

Figure B-4. October 18-19 Temperature and Humidity Ramp Down

Figure B-5. October 19-20 Temperature and Humidity Ramp Down

Figure B-6. October 20-21 Temperature and Humidity Ramp Down

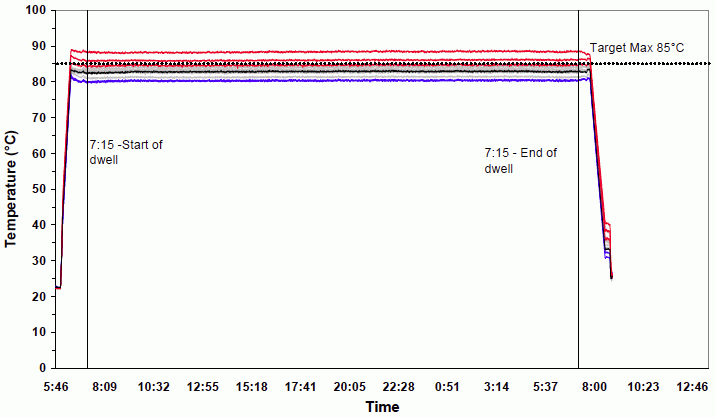

Figure B-7. October 18-19 Disc Temperatures

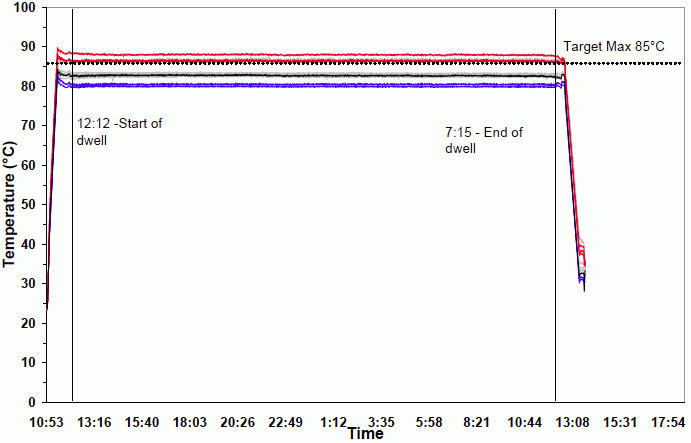

Figure B-8. October 19-20 Disc Temperatures

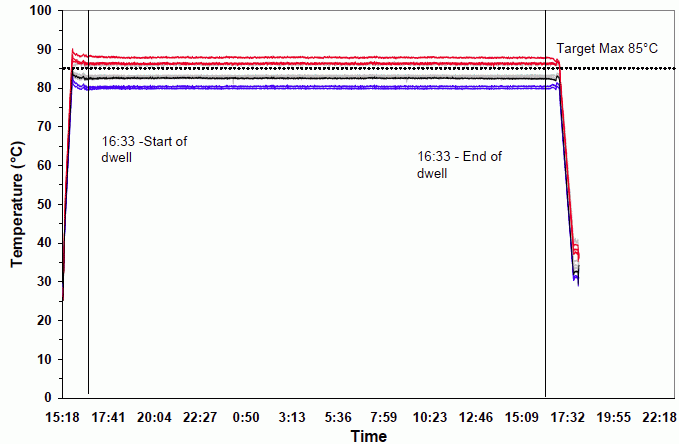

Figure B-9. October 20-21 Disc Temperatures

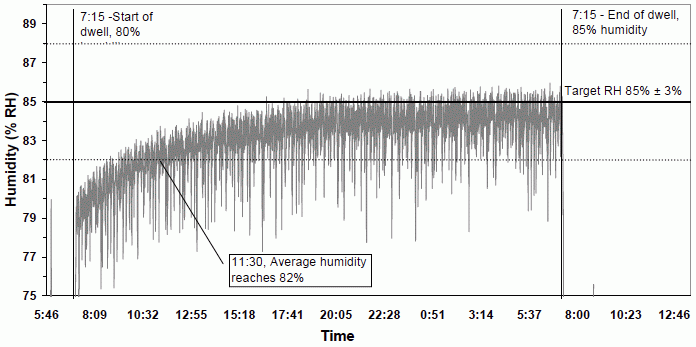

Figure B-10 October 18-19 Humidity

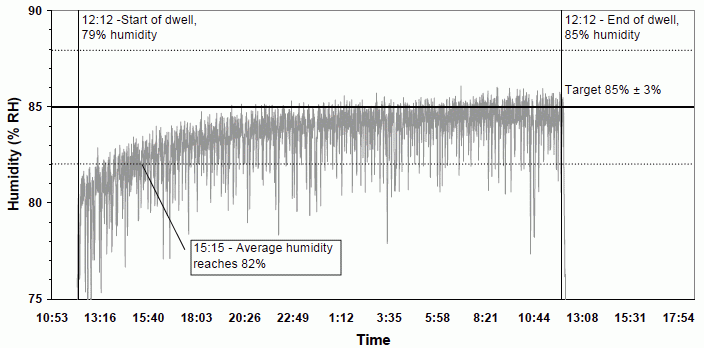

Figure B-11. October 19-20 Humidity

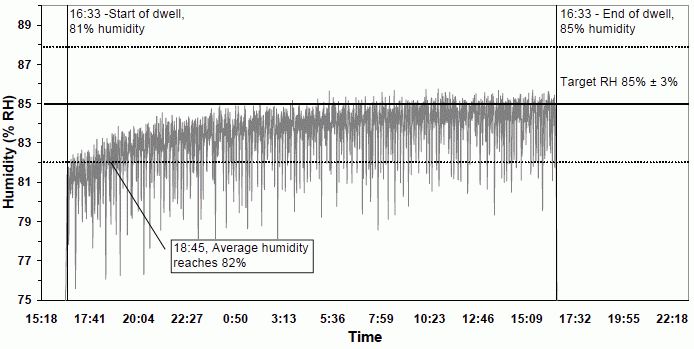

Figure B-12. October 20-21 Humidity

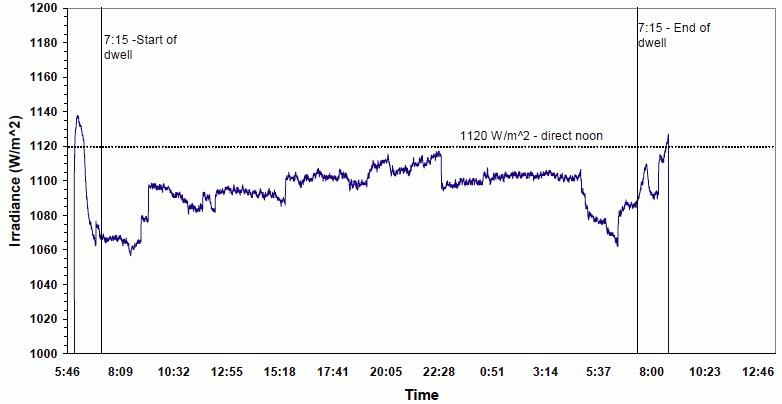

Figure B-13. October 18-19 Irradiance

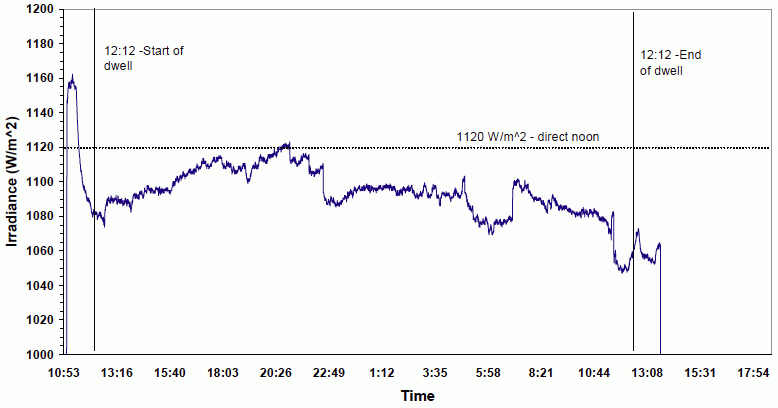

Figure B-14. October 19-20 Irradiance

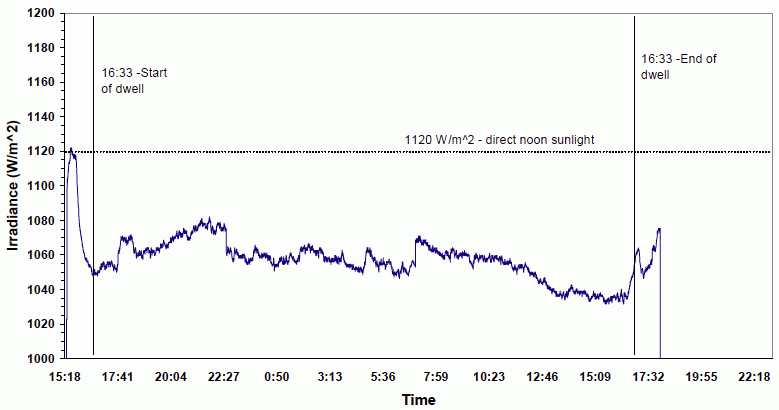

Figure B-15. October 20-21 Irradiance

APPENDIX C POST STRESS DATA

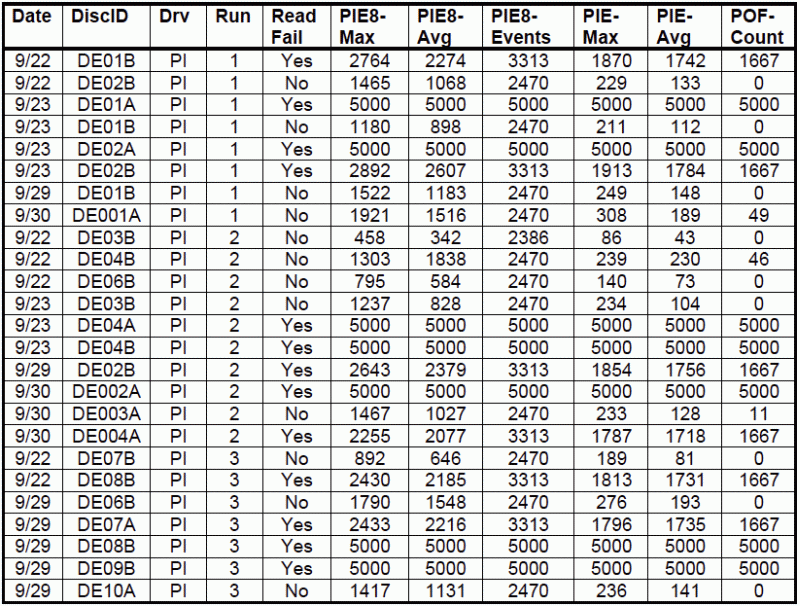

Table C-1. Delkin Post Test Data

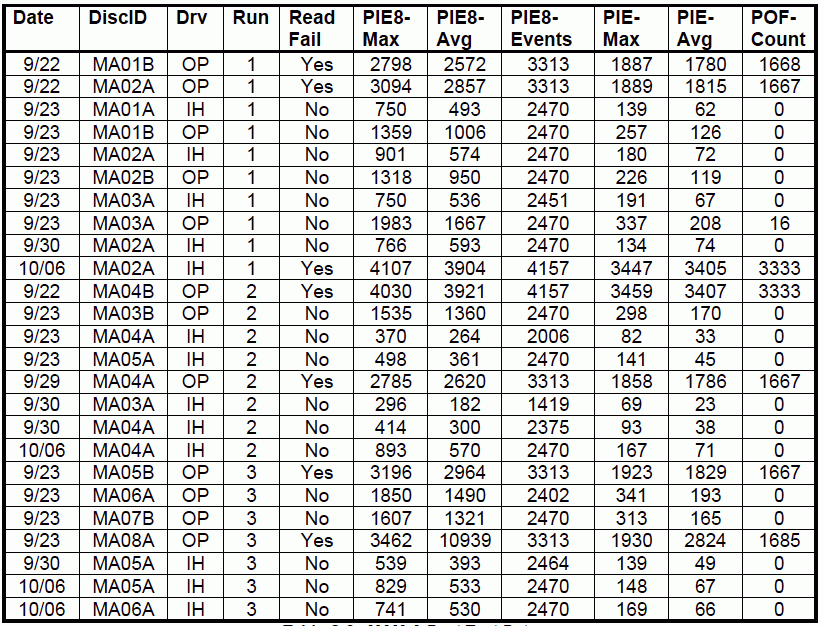

Table C-2. MAM-A Post Test Data

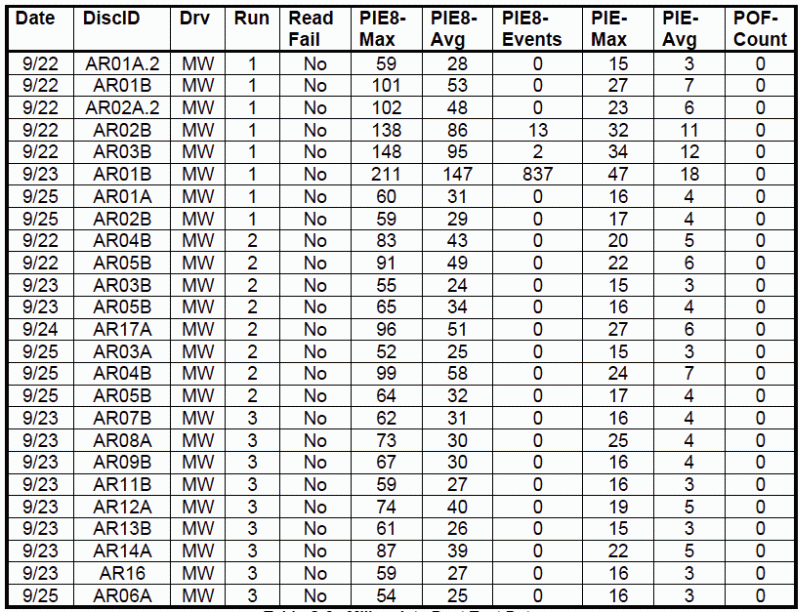

Table C-3. Millenniata Post Test Data

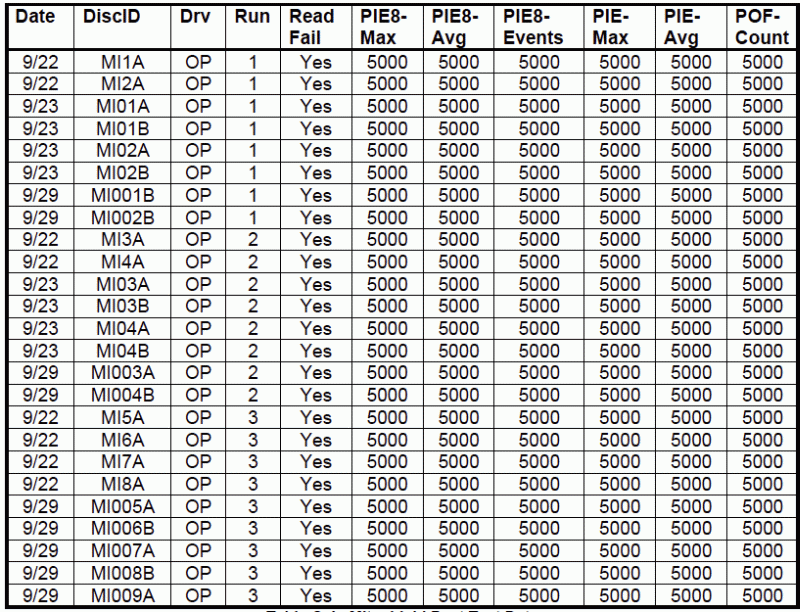

Table C-4. Mitsubishi Post Test Data

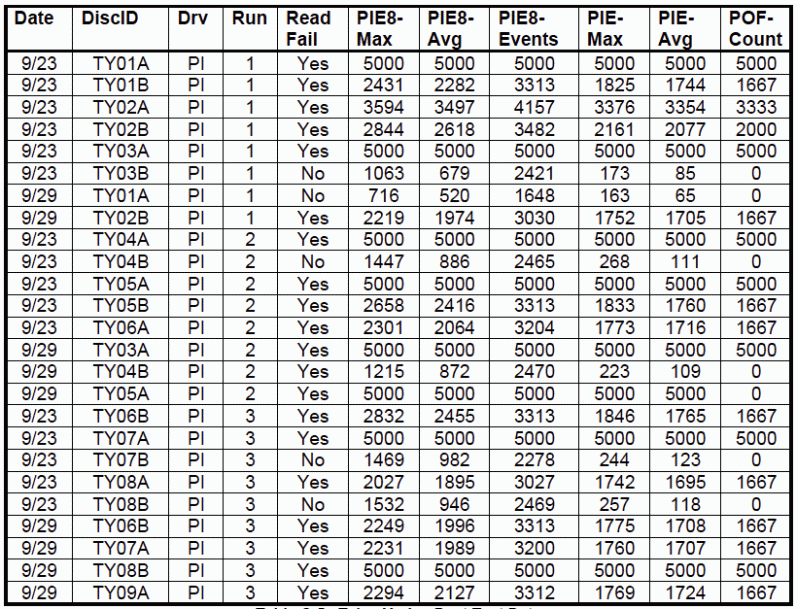

Table C-5. Taiyo Yuden Post Test Data

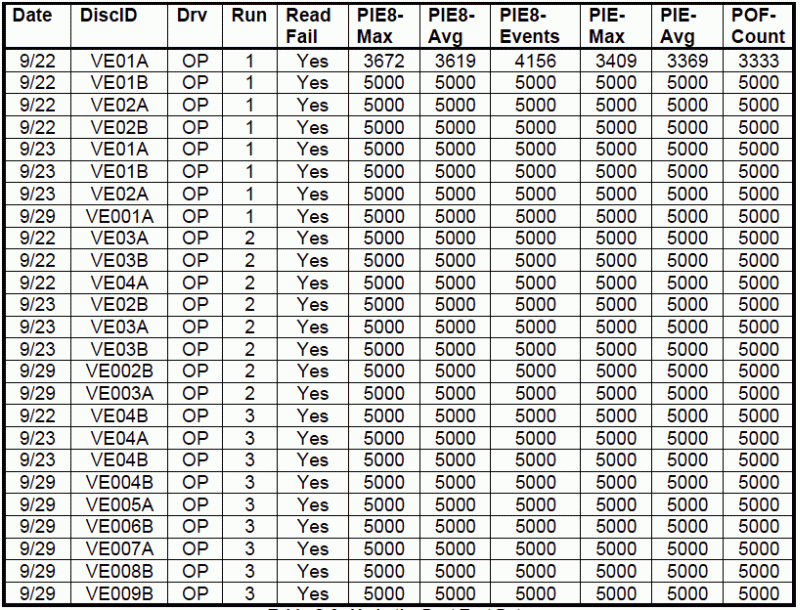

Table C-6. Verbatim Post Test Data

contents | page one | page two | page three
This concludes page three. To view the previous pages, click page one or two above.
